Main Feature

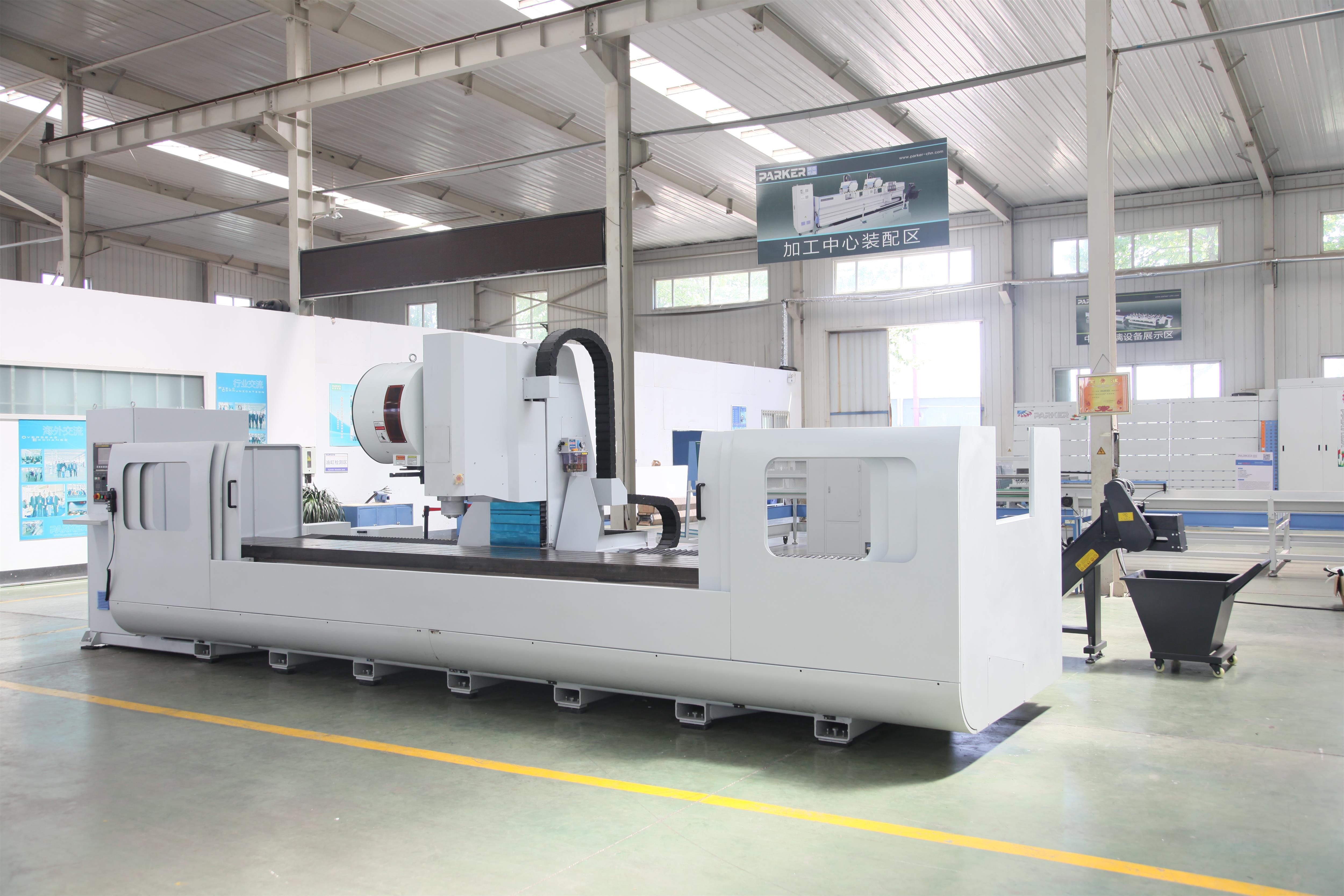

1.Automatic multiple machining center with functions of milling, drilling, tapping, routing, chamfering, designed for various length of aluminum, copper, profile steel,etc.
2.It adopts automatically chip removing machines.
3.The machines is equipped with BT40 spindle, which provides high connection rigidity.
4.The machine is equipped with protective cover, which guarantees the operating safety and cleanness.
5.The machine adopts arm-type tool magazine.
6.The machine can be customized into different models according to clients’ requirement.
STROKE
| Stroke for X axis | 4500/6000mm（2500mm~12500mm） |
| Stroke for Y axis | 500/600mm |
| Stroke for Z axis | 500mm |
| SPINDLE |
| Spindle Speed | 12000 RPM |
| Spindle Taper | BT40 |
| TOOLS |
| Tools Changer Format | 圆盘式 |
| Capacity Of Tools Magazine | 24 |
| Tool Change Time | 2.0（2.0 sec） |
| MOVING SPEED |
| X Axis Moving Speed | 60m/min |
| Y Axis Moving Speed | 30m/min |
| Z Axis Moving Speed | 30m/min |
| X/Y/Z Feeding Speed | 1-1500mm/min |
| POWER OF MOTOR |
| Spindle Driven Motor | 7.5 kw |
| X/Y/Z Driven Motor | 3.0 kw |
|
|
|
| LUBRICATING SYSTEM |
| Lubricating System | 集中自动润滑 |
| Cooling System | Water Cooling System |
| PRECISION |
| Position Precision Of X Axis | ±0.05 mm |
| Position Precision Of Y /Z Axis | ±0.02 mm |
| Repeating Position | ±0.02 mm |
| SIXE OF MACHINE |
| Power Supply | AC 380V 50Hz |
| Power | 20KW |
| Air Pressure | 0.5MPa – 0.8MPa |
| Height | 2600 mm |
| Weight | 5000 kg~22000KG |
| Area | 9300mm×2600mm×2700mm |
| MAIN COMPONENT CONFIGURATION |
| Operation System | FANUC 0I MF SYSTEM |
| Serve Motor | FANUC β |
| Spindle Motor | FANUC，7.5KW，12000 RPM |
| Spindle | BT40，12000RPM |
| Tools Magazin | HAND WHEEL INDUSTRY24位TURRET |
| Guide Rails | THK |
| Bearings | NSK |
| Ball Screw | TBI C5 |
| Hand wheel |
|
| Electrical Parts | Schneider |
| Pneumatic Components | AIRTAC |
| Reducer | ATG |
| Water Pump | Shanghai
|
| Guide Rail Lubrication System | Guangdong |
